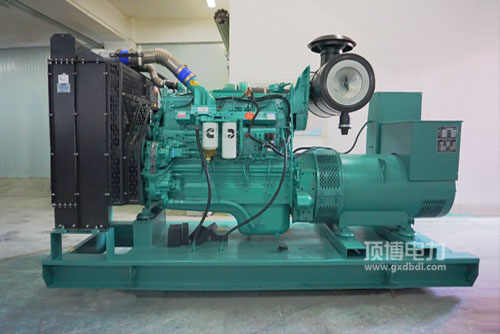

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电站用打火机然油金钱性好: 最先进的然油管理操作系统化，特有的STC、ESTC 分级管理管理操作系统化，非常规设计的的气缸顶上燃燒室，高压力输送然油，充足吸雾，燃燒充足。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电站用打着机瞬态使用性能不错: 很好的的打着机局部制定，协调康明斯差异化的的EFC平台，调节高精度就越高，加载失败时段快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯带发电用热车机升公率高: 纵向设计构思紧密.外观简约时尚布置设计合理可行，启动平稳性。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷cpu类型 QSNT. QSK19. QSK38. QSK50实现国非发展再者关键期及美洲Tier2. Tier 3废气排放法律规范请求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备用件必得性好， 发起机行驶及定期维护护理快速，成本投入低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

马力条件 Power Range   224-310KW型号规格 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观设计尺寸大小 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净质量水平 Dry Weight   940kg

224-310KW康明斯发电机组用热车机的特性：体积计算小， 减少变高， 喷淋喷嘴气体加温，最易进行，移动端车载影音电源模块的第一选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

启因素型號	普遍工作电压(kW)Prime Power	备品马力kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
